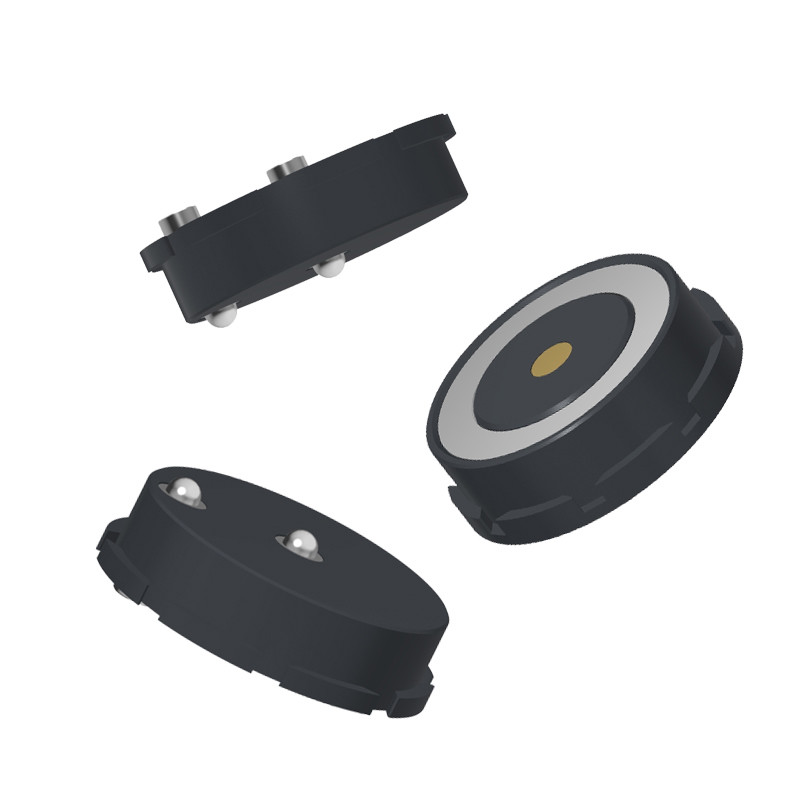

10A current circular 2-pin magnetic pogo pin connector that rating of temperature 260℃.
Magnetic Connector – Compliance & Quality Assurance
✅ RoHS & REACH Compliant Materials
All materials used in our magnetic connectors fully comply with RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) regulations, ensuring environmental safety and regulatory adherence.
✅ 100% Short & Open Circuit Tested
Every unit undergoes rigorous electrical testing, including 100% short-circuit and open-circuit testing, guaranteeing reliable performance and durability.
Magnetic Connector – Material Composition
1. Pogo Pin
Base Material: Brass C6801
Plating: Platinum (Pt) 0.25µm
2. Turning Parts
Material: Brass C6801
Plating: Platinum (Pt) 0.25µm
3. Housing
Material: HTN (High-Temperature Nylon)
Color: Black
Flammability Rating: UL94 V-0 (Self-extinguishing)
4. Magnet
Grade: N52 NdFeB (Neodymium Iron Boron – High Strength)
Plating: Ni-Cu-Ni (Nickel-Copper-Nickel Triple-Layer for Corrosion Resistance)
5. Metallic Shell
Material: Brass C3602 (Free-Machining Brass)
Plating: Nickel (Ni) for Durability & Oxidation Resistance
Magnetic Connector – Technical Specifications
-Mechanical Properties
Contact Force:
160g ±20g at 1.2mm working stroke (consistent mating pressure)
Durability (Adsorption Life Test): 50,000 cycles (male/female plug engagement)
-Electrical Performance
Rated Voltage: DC 5V
Rated Current: 10A Max
Contact Resistance (Spring Pin): ≤50 mΩ Max (low-resistance stable connection)
-Environmental Reliability
Temperature Tolerance (Soldering/Assembly): 260°C (resists reflow heat)
Operating Temperature Range: -25°C to +60°C (suitable for harsh conditions)
Corrosion Resistance (Salt Spray Test): 24 hours (meets IEC 60068-2-11 standard)
-Compliance & Testing Summary
Mechanical: 50K cycle lifespan, precise contact force
Electrical: Low resistance (<50mΩ), high-current (10A) capable
Environmental: Withstands extreme temps, humidity, and corrosion
Certifications: RoHS & REACH compliant | UL94 V-0 flame-rated
2Pin Male Magnetic Connectors & Magnetic Connector Parameter:
|
Name
|
Circular Magnetic Connector
|
|
Type
|
Male/Female
|
|
Pin
|
2pin
|
|
Color
|
Black
|
|
Pogo pin
|
Brass C6801Plating Pt 0.25um
|
|
Female pin
|
Brass C6801Plating Pt 0.25um
|
|
Metallic Shell
|
Brass C3602 Plating Ni
|
| Magnet |
N52 NdFeB Plating Ni Cu Ni
|
|
Spring force
|
160g±20g,at 1.2mm working storke.
|
|
Mechanical life
|
50000 cycle Min..
|
|
Current
|
10.0AMax
|
|
Voltage
|
DC 5V
|
|
Contact resistance
|
50mΩ Max (PIN).
|
|
Operation Temperature
|
25℃to +60℃
|
|
Salt spray test
|
24H
|
|
Certification
|
ROHS or REACH compliant product
|
|
Test
|
100% open and short test
|
Circular Male Magnetic Connector Technical Drawing
Circular Female Magnetic Connector Technical Drawing
Advantages of Magnetic Connector:
●Humanize design of automatic adsorption connection experience;
●Humanized anti-fall: it is easy to remove from the charging interface, and it is not easy to remove the device;
●Life time: up to 100,000-200,000cycle;
●Waterproof design: the female end of the device can be dustproof and waterproof (IPX8);
●Fast charging time: 5A-10A magnet connector design withstands large current transmission;
●The appearance of the magnetic connector can be matched according to the design of the customer's application device;
●Product anti-short circuit structure design and foolproof;
●Realize high frequency signal transmission,can replace the traditional USB2.0 HDMI 1.3 function Video&Audio signal transmission
Magnetic connector products application:
Why UPE shall be your partner?
1.Specialized Expertise in Magnetic Connectors
●Focused R&D: UPE has dedicated experience in magnetic connectors
●Customization: UPE can tailor magnet strength, pin plating (gold/nickel for ≤50mΩ resistance), and housing materials (black PBT/nylon) to your needs.
2. High Durability & Compliance
●10,000+ Cycles Guaranteed: Their connectors likely undergo rigorous testing to meet your mechanical life demand.
●Certifications: Compliant with UL, or RoHS standards—critical for consumer/medical markets.
3. Competitive Manufacturing
●Cost-Effective Tooling: UPE may offer low MOQs (e.g., 1K–5K units) with competitive pricing for small-to-medium batches.
●Quality Control: In-house testing for contact resistance, pull force, and current load to ensure reliability.
4. Fast Prototyping & Support
●3D Samples in Days: Rapid prototyping for fit/function checks
●Engineering Support: Assistance with pinout optimization, EMI shielding, or waterproofing (IP68).
How to Place Your Magnetic Cable Connector Order with UPE
1. Submit Your Requirements
Contact our sales team via:
Email: [union@upetech.net]
Phone: [+86 13434524996]
Online Form: [www.pogopinsconnector.com]
Provide details:
✔ Application (e.g., medical, automotive, consumer electronics)
✔ Connector type (e.g., magnetic pogo pin, charging cable)
✔ Specifications (voltage, current, size, waterproof rating, etc.)
✔ Quantity & lead time
2. Get a Custom Solution (If Needed)
Our engineers will review your needs and propose a custom design (if required).
We’ll share 3D models, samples, or technical drawings for approval.
Payment Term:
50% Deposit (Paid upfront): Covers production costs (materials, labor).
50% Balance (Paid before shipment): Ensures quality control and commitment from both parties.
Payment method:
T/T (Bank Transfer),PayPal ,OCBC Bank
Recommendation:
Use PayPal for samples (safer).
Use T/T for bulk orders (lower fees).
Sample Lead Time: Inventory sample 2-3Working day/customized sample 5-7Working day
Production Lead Time:10-15Working day
Made For: America,Europe,Asia,South African
Trade Term: EXW
Freight: Air,Sea,Express
